Stake Out Aid with Target Refectors & Ruling Lines – Foldable

SKU: 03-RS96-R Category:
Dwsitepro Aperture

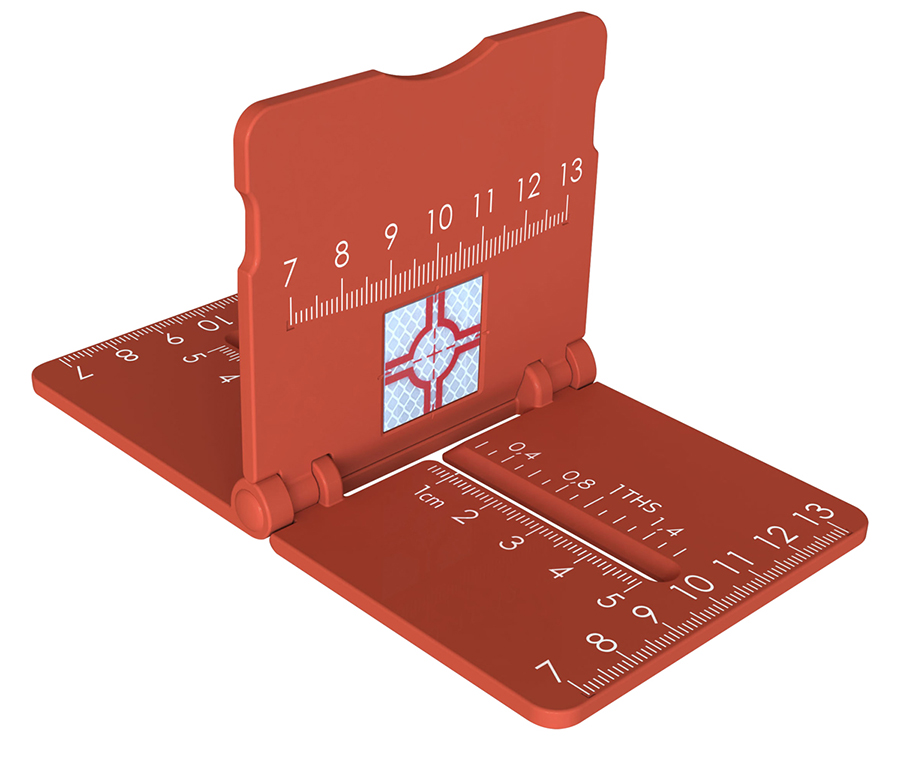

Stake-out aids RS96 was developed specifically for stake-out work on the batter board and on a floor slab. Exact measuring of the survey point on the floor slab often causes major problems particularly in the “final phase” with the last 5-10 cm. The work is very time-consuming due to the continual side to side, backwards and forwards with the prism pole and the prism pole always has to be exactly plumb. Foldable stake-out aid is placed on the ground, and the assistant can use the measuring scales to reproduce and transfer the surveyor’s directions quickly and precisely.
  • Target height: 20mm

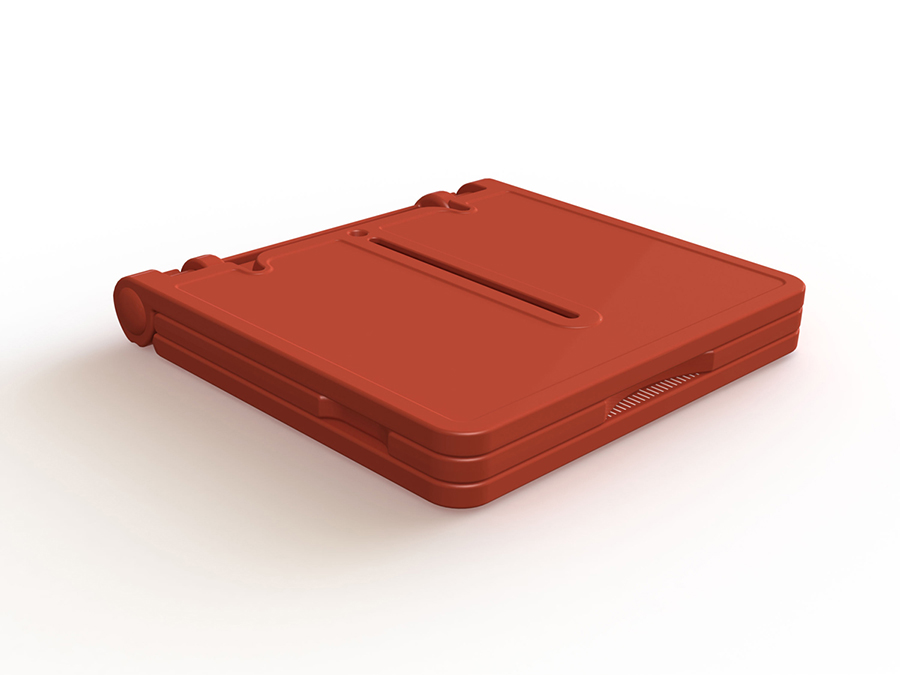

  • Foldable- collapses to 64mm x 75mm to fit easily into pocket
  • Stake-out aid with (2) reflective targets 20 x 20 mm
  • Advantages of the stake-out aids
    • They make surveying the axes on the batter board easier
    • Dimensions can be measured quickly and precisely on the floor slab
    • The surveyor’s dimensional data can be transferred accurately to the floor slab
    • There is no need for precise plumbing of the prism pole
    • Orientation scale for left and right: the number 10 corresponds to the axis
    • Orientation scales for backwards and forwards
    • Foldable: fits in any shirt pocket and in any instrument case
    • After just a little practice enormous saving of time.
  • Red Color
In Stock
